| RubyTM Expander Spanner |
The Expander Spanner is only needed if you wish to use servo outputs 7, 8, or 9. It is not needed for other functions of the Expander.

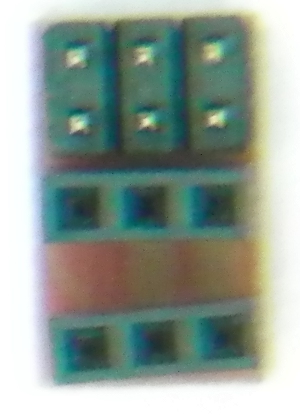

The Expander Spanner is a small block which bridges the servo power bus on the Controller to the servo power bus on the Expander.
(This spanner allows us to avoid routing high current through Ruby's circuit board and fine pitched connector.)
|
 |

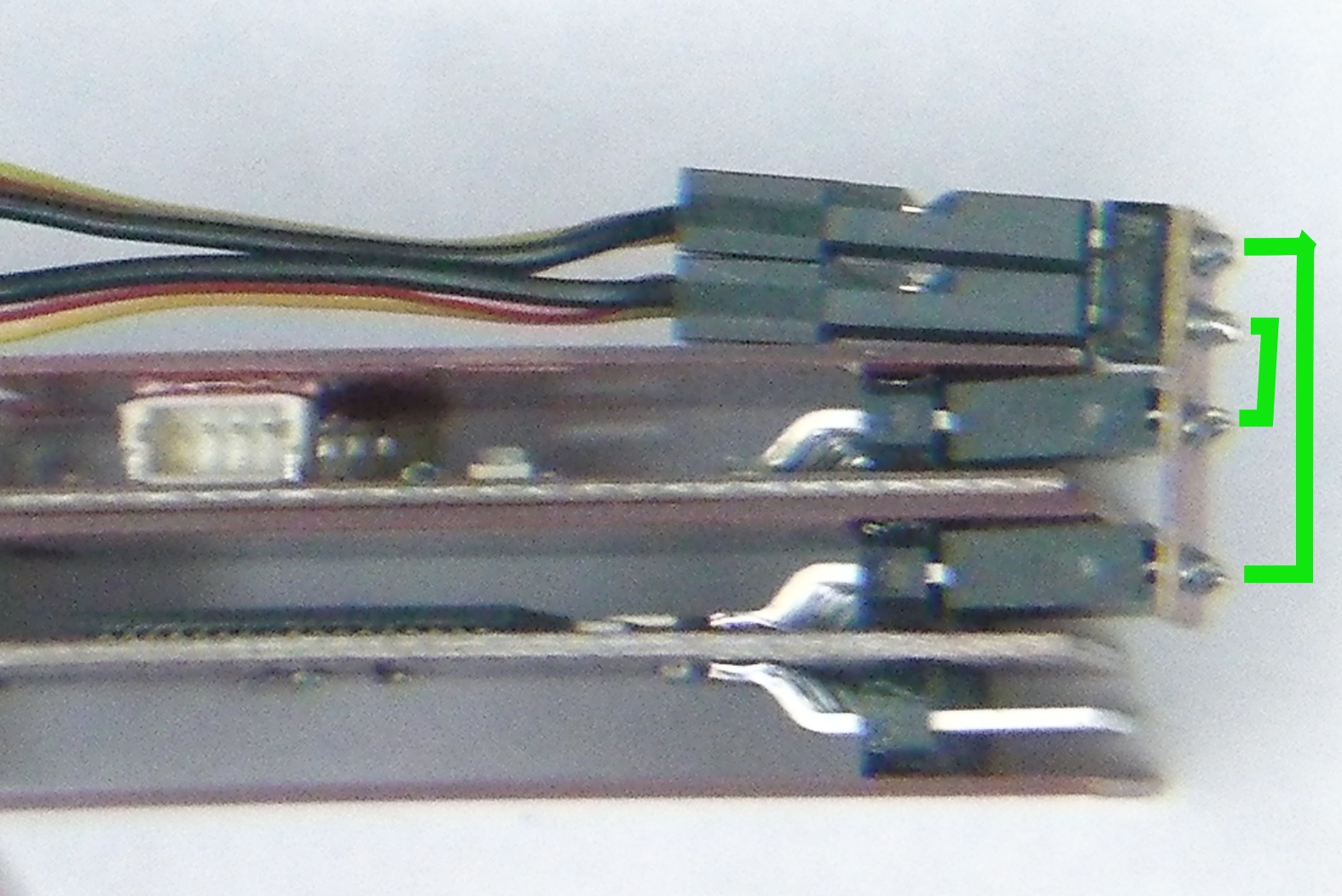

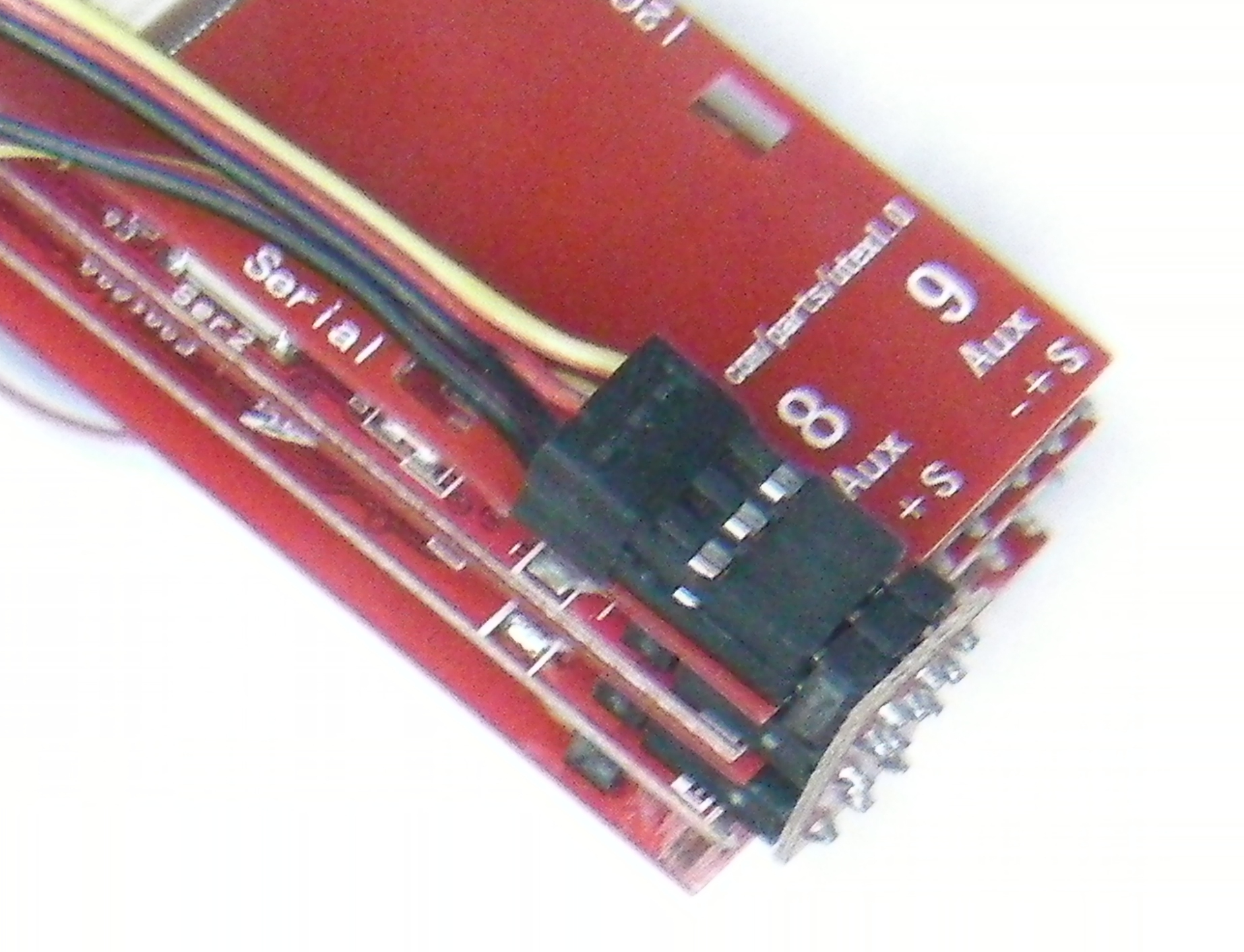

| The jumper can span from channel 1 to 7, 3 to 8, or 5 to 9. The servo outputs are made available on its pins as shown in this picture: |
click to enlarge |
| |
click to enlarge
|
| Contact sales@uthere.com to obtain a free Expander Spanner. |
|
|
